Chapter four introduced the theory and methods of participatory planning as "a transparent, democratic process that uses consensus building through the collaboration of ideals, values, objectives and input from all participants (Comerio 1984)." Additionally, this model opposes the traditional model, top-down approach to planning, which is customarily client-serving rather than vision-making (Francis 1999). This method is intended to enable and empower the participants; identify problems and opportunities; and facilitates the vision, goals and principles developed during the workshops process (Hamdi and Goethert 1997; Sanoff 2000). As identified in chapter one, the economic crisis, budget cuts and spiking enrollment have conspired to create a perfect storm for higher education is one of many reasons LCC has pursued a line of research that will help develop an alternative development strategy for the 21st century community college; one that will help foster economic, social and environmental accessibility.

This chapter presents this initiative under the framework of participatory planning as discussed in chapter four. It also presents the sites' characteristics and history, the participatory planning experience, and then reveals the opportunities and constraints identified from the two public workshops.

Return to top

THE STUDY AREA

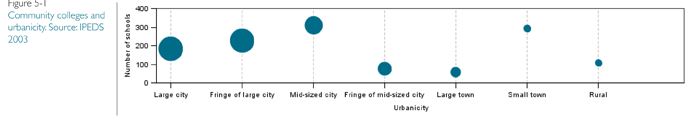

Figure 5-1 Community colleges and urbanicity This project focuses on land that is located at the edge of the Eugene and Springfield metropolitan areas that runs perpendicular to Interstate Highway 5 (I-5) although partitioned by two adjacent properties. The site selection process in LCC's Long Range Plan (1966-76) is similar to those discussed at a 1967 Council of Educational Facility Planners conference identifying five general site location factors: geography, general and school population, transportation and communication, and economy (Parker and Smith 1968). After a review of these factors, the LCC Board of Land Acquisitions chose the existing site out of nine potential locations, which involved a gift of one hundred acres and the purchase of forty-eight additional acres (LCC Long Range Plan 1966). This locational typology would become pervasive for community colleges throughout America and confirms that development at the edge, primarily designed to support automobile access and, to a lesser extent, public transit; focused towards a single industry, developed at a low floor-area-ratio, and oriented around large parking lots, is characteristic of contemporary shopping malls, hospitals, religious organizations and community colleges in the United States (American Association of Community Colleges 2008). Furthermore, roughly 24% of community colleges are defined as being on the fringe of both large and midsized cities (see figure 5.1) capturing approximately 32% of total enrollment (see figure 5.2).

Figure 5-2 Community colleges enrollment by urbanicity

An overarching goal for LCC was, and still is, to provide "access" to every citizen of Lane County (LCC Long Range Plan 1966). "Education for all" is a democratic notion that manifests itself both literally and figuratively in the selection of a site that is geographically accessible to all county residents (LCC Long Range Plan 1966).

In fact, the location of many community colleges highlights a suburban focus. As Andrew and Fonseca note, many community colleges are located near high volume roadways at the fringe of metropolitan American communities (Andrews and Fonseca 1998). Their campuses have poor connectivity to the metropolitan fabric and they typically do not integrate industries that support their mission on their land. These fringe developments enforce inefficient land use patterns, contribute to time lost due to congestion, and restrict transportation options.

In addition to Lane Community College's main campus being an ideal study area because it is a representative model of single industry peripheral metropolitan development, it also has a user group of over 40,000 people - full and part time faculty, staff and students - that travel to and use its campus annually.

Return to top

Figure 5-4 Aerial view November 1968 LCC archives Site and History. Lane Community College (LCC) website states they serve a 4,600 square miles area, with a county population of 346,500, ranging from the Cascade Mountains to the Pacific Ocean. LCC is located outside of the Eugene and Springfield Urban Growth Boundaries (UGB), but within the Metro Plan Boundary (MPB) in the south hills of Eugene, Oregon (see figure 5.3). Eugene (population 154,000) and adjoining Springfield (population 57,000) make up the second largest population center in the state (US Census, American Fact Finder 2006-2008). In 1964, local citizens voted to establish the college. The Eugene-based architecture firm, Balzhiser, Seder & Rhodes, developed the Comprehensive Campus Plan for Lane Community College in 1965-66 with two main principles:

An egalitarian view where the vocational/ technical and college transfer programs are integrated to create a collective campus community focused around a center building, literally set in the middle of campus, to serve all students; and
The flexibility of all spaces to be built with non-structural walls to enable the remodeling of spaces, changing with the college's enrollment and educational needs.

The main campus opened in 1968 and currently has branch facilities in downtown Eugene, a Flight Tchnology Center at the Mahon Airport (Eugene) a Business Development Center in the Wildish Building (Eugene) and two additional centers in Cottage Grove and Florence. In 1995 a bond Measure passed and several new buildings were added to the campus. Most recently, in 2009, in conjunction with a second bond measure, state and private funding, some renovations and two new buildings are being funded. Besides these recent projects the main campus has had very little change since its initial development (see figure 5-4).

Return to top

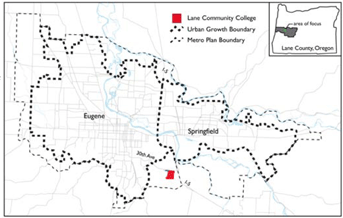

Zoning and Land Use. The UGB is the primary growth management technique for controlling urbanization in Oregon communities that controls the potential for urban sprawl and scattered development (Porter 2008). The UGB separates urban and urbanizable lands from rural lands. The MPB bounds the area that includes Springfield, Eugene, and unincorporated urban, urbanizable, rural, and agricultural lands and is defined in the Metro Plan (2004). The Metro Plan lays out the planning policies and land use allocations allowable within its boundary. It serves as the basis for the "coordinated development of programs concerning the use and conservation of physical resources, furtherance of assets, and development or redevelopment of the metropolitan area. The Metro Plan is intended to designate a sufficient amount of urbanizable land to accommodate the need for further urban expansion... of metropolitan Lane County and the cities of Eugene and Springfield" (Metro Plan 2004).

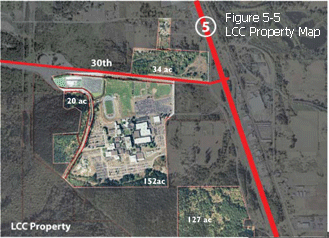

Figure 5-5 LCC Property map LCC is made up of roughly 330 acres divided into five parcels (see figure 5-5 and 5-6). The entirety of LCC's land holdings are roughly bound by I-5 and Eldon Schafer Drive to the east, 30th Avenue to the north, Gonyea Road to the west, and undeveloped forest land to the south. A description of each parcel and its Metro Plan designated land use follow.

The first two groupings are designated as 'Government and Education' land in the Metro Plan.

The main parcel is 153 acres and includes: 35 acres of the core campus surrounded by 32 acres of parking, 7 acres of wastewater-treatment lagoons, and 83 acres of road and open space.
Two parcels, 10 acres each, lie to the west and south of Gonyea Road and are predominantly a mixed Douglas-Fir forest and wetlands.

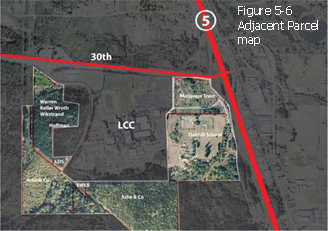

Figure 5-6 Adjacent parcel map The third grouping is designated as 'agriculture'. - 30 acres of forested wetlands lies to the north of 30th Avenue and west of McVay Highway. The eastern portion of this area is fill from illegal dumping that has long been halted. This parcel has a handle which protrudes north towards Bloomberg Road.

The last group is designated 'Forest Land'. - 127 acres of mixed Douglas-Fir forest lies to the southeast. It is disconnected from the main campus core and there is rumor that this site was used as a Native American winter camp site.

Return to top

PARTICIPATORY PLANNING IN ACTION

Participation is important because people have the right to participate in decision-making that directly affects their environment. "This means direct public involvement in decision-making processes whereby people share in social decisions that determine the quality and directions of their lives (Sanoff 2000)." Taking into account these ideas, Lane Community College choose to work with the Urban Design Lab (UDL) as a partner, who is committed to promoting participation in planning through the participatory planning method and strategy outlined in chapter four. Some main goals of the UDL were to organize ongoing meetings for consultation about the present situation of LCC (this chapter), administer and analyze an online user survey (appendices III-V), prepare a vision statement, guiding principles and measureable goals that took place during the two workshops (this chapter); create and evaluate alternative design approaches and submit an agreed upon preferred alternative that is implementable (chapter six).

Administrative Roundtable. In early October, to lead off the planning process, the Urban Design Lab sat and listened to the concerns and hopes of the LCC administration. The discussion that ensued served as the beginning framework for the two public workshops.

Mary Spilde, the President of LCC Public, pointed out that "funding on the national level can be challenging... that Oregon was a poster child of disinvestment" and now that the country is in a recession, noted that funding is even more challenging. She also acknowledged "there will never be enough funding, even with the twelve billion dollars investment President Obama's administration is making available."

President Spilde remarked that out of this process she hoped "to leave a legacy...to the greater community"

Sonya Christian, the VP of Academic & Student Affairs, felt that LCC's commitment to the long range visioning process mirrored its commitment to the future of the college. She also pointed out that the school needed to continue its commitment towards sustainability, specifically referencing: (1) how environmental sustainability was already inline with their key values; (2) that their continued support of social sustainability (social justice) needed to be imbedded in to the physical plan; and (3) the need to ensure their own future through fiscal sustainability.

Greg Morgan, the chief financial officer, was very insistent that "all residents of Lane County were shareholder of LCC's assets" and "that the public should be included in the process." President Spilde agreed and was interested in finding out "what the stakeholders thought were LCC's strengths and how best to capitalize on them...taking our destiny into our own hands."

Other LCC administrators' hopes included: "wanting to use our land as an asset...the desire for the long range visioning document to coincide with the educational mission to help ensure fiscal and educational future success...better wayfinding... taking advantage of the spectacular site...the need for curb appeal in a new design was important..." Furthermore, the administration brought to our attention three additional concerns that needed to be considered: (1) the current LCC design guidelines have incorporated the results of a student survey capturing preferences and opinions on environmental quality at LCC; (2) that LCC sits outside the urban growth boundary and that there is potential for an expansion of either the Eugene or Springfield urban growth boundaries; (3) LCC has interest in pursuing public and private partnerships that could create opportunities to better serve the college.

Return to top

Visioning Workshop. The workshops aim was to identify, prioritize, document and analyze the local environmental, social and economic challenges, and opportunities through a collaborative discussion of shared knowledge, in which people came to learn about potential impacts, problems and opportunities, and possible ways of valuing and addressing them. The information collected during the two workshops was used to compile a list of goals and broad objectives to formulate a vision statement that directs the ongoing development vision design process.

Both workshops were held at Lane Community College's Center for Meeting and Learning, therefore adhering to the fundamental principles of holding the collaborative group workshops on-site. The first workshop was held on Monday, October 19th and the second, on Saturday, October 24th, 2009. Both workshops were held from 9am to 2pm. Twenty-five LCC faculty, staff and students, two design professionals, and one adjacent landowner representative (EWEB) participated in the first workshop; and nine LCC faculty, staff or students, three neighbors, two local professionals, and one adjacent landowner representative (Arlie & Co.) participated in the second workshop.

The participants were asked to sit at round tables of six to eight people and to the best of their ability, sit with people with whom they had no affiliation. Participants were asked to actively participate in the brainstorming exercise and told that no one should criticize any ideas. Guidance was provided at each table by University of Oregon Architecture students (UDL interns) and under the supervision of the faculty advisor and UDL founder, Mark Gillem. The UDL project manager, Barry Gordon led the workshops. Twentyseven design team members took part in the visioning process acting as presenters, facilitators and scribes. Input from the design team was not included in the data analysis. In order to keep their data separate the letters "UO" were placed next to design team member's input. After the introduction of the day's goals for the workshop, but prior to the beginning of the participatory process, the Urban Design Lab presented its findings from precedent studies of regional community colleges. Hamdi calls the process of precedent studies as "measuring" and describes it as "[l] ooking, listening, and talking" (Hamdi and Goethert 1997). Although, Hamdi described this method as more quantitative than qualitative, our experiences during the case studies were quite the opposite. We held both formal and informal interviews, toured the campuses and diagrammed. These studies can be found in chapter three of this document.

Return to top

Problem Seeking: The visioning workshops were structured to maximize collaborative participation through a series of four exercises. The discussion started with identifying, prioritizing, documenting and analyzing opinions and preferences in the first two exercises by using the Crawford Slip technique. Dr. C.C. Crawford, Professor of Education at the University of Southern California, invented the Crawford Slip technique in the 1920's. This method allows for large groups of people to brainstorm a lot of ideas in a short period of time by writing and then collating the input or ideas on slips of paper (Andersen 2007). Using the Crawford Slip data gathering technique, the participants brainstormed ideas for two minutes per question - one idea per piece of paper - with no limit in the quantity of ideas, except for the time. The data was gathered quickly and collected in separate envelopes. After all the questions had been asked, each team was assigned an envelop to sort and discuss the ideas, order them thematically, and prioritize them by syntax quantity. The themed data was then developed into concept tree diagrams – this is a graphic representation of the ideas - then presented the diagrams to the entire group. (Major themes are presented in italics.)

S.W.O.T. Analysis. The first exercise asked questions dealing with the strengths, weaknesses, opportunities and threats at LCC. What materialized out of this exercise was a hierarchy of beliefs and preferences that have helped create the collection of opportunities and issues for the project.

Return to top

Six main STRENGTHS were identified in this section (see figure 5-7). Recognition of the commitment and caring leadership of the Staff and Faculty are intimately connected to forward thinking, and an open community that continues to support LCC's continuous ability to adapt and add variety and quality classes to its Educational Mission. In addition, LCC has a large Portfolio of Land that presents the chance to utilize the Surrounding Landscape to its advantage. The qualities of accessibility and circulation are linked to the Proximity of surroundings cities (Eugene and Springfield), the natural setting, the campus core and nearness of two major roadways. The last theme – Buildings – deals with cohesion of style, durability, closeness to each other, and the indiscernible center of campus.

Figure 5-7

A majority of the WEAKNESSESS illustrated the Locational Disadvantage and the issues of campus parking (see figure 5-8). The juxtaposition of the sea of parking to surrounding natural areas encroaches on the Accessibility and Imageability of the campus. Additionally, the qualities of wayfinding, architectural aesthetic, and lack of after-hours activities create a bland and Uninteresting Environment.

Figure 5-8

Return to top

All the OPPORTUNITIES recorded connect the universal desire by the participants for Growth (see figure 5-9). LCC's Land Holdings can be developed as an incubator to create jobs, increase revenue, and reaffirm its commitment to Sustainability practices by linking and growing existing and new Academic Programs to this mission. Many of the supporting intentions are listed here: childcare, senior living and learning, arts, housing, hospitality, environmental stewardship, green leadership programs and buildings, open space and rainwater management, enterprising partnerships, a campus village, outreach support to community functions, students, and the college's attractiveness to international and out-of-state students.

Figure 5-9

The list of THREATS was long and comprehensive (see figure 5-10). The lack of a Long Term Planning Vision connects all of the major themes of this category and is closely linked to the ills of Unguided Development and the concern of encroaching Sprawl. Additionally, being located outside the urban growth boundary is another planning hurdle and includes the lack of Urban Services, such as sewer and water. This Locational Disadvantage highlights many public safety concerns like limited campus security, emergency response time, and isolation and lighting limitations. The poor and intimidating Architectural Style of the buildings was also noted as costly to maintain, limited in terms of functionality and credited for creating unhealthy environments. The Lack of Funding and competition in these poor economic times is a major concern when budgets are getting cut, the cost of transportation is rising, an overflow of students that can not be accommodated, a lessening of community support and a lack of federal loans to students means lower affordability. The Community is listed as a threat that heightens a perceived lack of political support, mindless naysayers, and competition between other regional colleges and universities. Climate change, the surrounding habitat and fear of natural disasters round out the threats in the Environmental theme.

Figure 5-10

Return to top

Blights and Rights. In the second exercise, the participants were asked to brainstorm as many blights and rights as possible in a five minute period. Blights are any physical or environmental attributes that are an issue and need to either be removed or significantly addressed; and Rights are any physical or environmental attributes that should continue or enhanced. At each table the workshop participants grouped the data into a 'David Letterman style' top-ten list of blights and rights. Each group was given two minutes to present their top-ten list to the entire group. The data was then compiled into corresponding topics and given a more detailed theme heading. The consolidated list of blights and rights below is not in a hierarchical order. General comments from workshop participants are either in quotations or are preempted by a statement like "meeting participants felt..." The comments that follow "◊" symbol and that are in italics are prescriptions from the Urban Design Lab members. The hope is that the long range vision will correct the blights and not violate the rights.

Consolidated Blights

Entry. There is no clear definition or hierarchy to the two entries to the campus. Many of the meeting participants felt that "there is little to no designation that you have arrived at LCC...the boulevard along the western edge of campus comes to an abrupt stop when entering the campus... while on 30th Avenue the view into campus is too industrial and unwelcoming." ◊ A solution is required that creates a deliberate hierarchy of gateways that shows Lane Community College's character as a place of higher education and its place in the community.

Gathering Spaces. "LCC was designed as a commuter college and there are few if any services that keep people on campus unless they have to be." Although there are many gathering spaces on campus, a common complaint was that "there are no quality spaces". ◊ The design team witnessed many people (mostly smoking) using outdoor spaces and this made the environment unpleasant. Locating businesses, cafes, services and improved gathering spaces on or near campus would give faculty, staff and students the option to run errands, study between classes, grab a bite to eat or gather with classmates/friends, and create the lively campus environment that is desired.

Return to top

Way-finding. Meeting participants commented that the massive size of the architecture, the building names [actually numbers], the lack of a clear central axis and the complex directional kiosk are all factors that led to way-finding issues. ◊ The lack of easily understood directions or cues leads to doubt, confusion and gives rise to a loss of time that could be spent in class or studying. A solution is required that creates clear visual links between buildings, architectural diversity, building uniqueness and necessary signage. In addition, the use of a central clock along converging axis could allow for spatial and time awareness.

Location. Workshop participants commented "the site feels isolated in distance and in safety, sitting alone, outside of the urban growth boundary." ◊ The future plans should investigate the possibility of ODOT upgrading the I-5 interchange; adding support or incubator services; and developing at a higher density to create the perceived safety needed to foster a safe, lively environment. Hence, bringing the community to the community college.

Accessibility. Meeting participants commented that topography at LCC makes circulation confusing, especially for people with disabilities. ◊ Connections to surrounding recreation, bikeways and nearby cities need to be kept in mind. The future vision of the campus should help create more equitable parking solutions and be mindful of accessible circulation systems for pedestrians, bicycles and maintenance vehicles.

Disconnected Parcels. The original plan for LCC states a tight core of buildings that would create the density needed to foster community. Many workshop participants were unaware that LCC owned so much unutilized land. ◊ The discontinuous parcels should be looked at to connect the community and the campus. Efforts need to look at design and political solutions necessary to generate synergy within and amongst the campus and its surroundings. A solution is required that may use transfer of development rights, land swaps or proven design implementations that incorporate connections to adjacent and disconnected parcels.

Transportation. Workshop participants all commented on the morning commute and the back up that occurs due to the low capacity at the I-5 interchange. Others complained about insufficient bicycle access and facilities, and LTD bus scheduling. ◊ Any plans should include ODOT's responsibility to upgrade the I-5 interchange and the addition by Lane County of several lights along 30th Avenue. The lights could facilitate new, prominent entry gateways into campus.

Architecture. Meeting participants remarked that the lack of human scale and architectural aesthetic created disconnectedness and sensitivity issues. Other comments collected speak about "sick buildings that lack natural light and have seemingly no soul." ◊ Research has shown that natural light promotes productivity and creativity. New buildings should be designed to maximize daylight and fit with the region Pacific Northwest aesthetic. Existing buildings should be upgraded to take advantage of sustainable technology and modified to integrate more holistically with its surroundings. In addition, existing buildings should be retrofit to take topographic change, accessibility and human scale into consideration.

Views. Many of the workshop participants commented that a large portion of the campus does not take into consideration the "outstanding views of the valley." Additionally, one of the highest elevation and "best viewing areas on campus is dedicated to parking." ◊ Common knowledge says that this is high value land; using this space for parking is not using the land at its best and highest value use. Creating view sheds and focusing people-oriented activities like recreation and housing, will allow people to take priority over parking and to enjoy the natural beauty and setting of the LCC basin.

Layout. Workshop participants comment that the core "campus is densely packed around the 'Center' building and almost completely surrounded by parking...and lacks a true focal point." ◊ The absence of a true center, varying levels of circulation and weak wayfinding makes the visual hierarchy of spaces difficult to traverse. The future vision for the campus should cultivate a building, circulation and open space hierarchy that include gathering spaces and multi-use areas that connect academic, administrative and recreational buildings with multiuse path systems linking the existing with the new.

Consolidated Rights

View Shed. Many of the workshop participants commented on the views to the east, to Mount Pisgah; and open farmland as "beautiful" and "iconically Oregon". ◊ Although the original design of the campus does not take advantage of this natural view shed, it is not too late. Any future development should take into consideration view corridors and consider building siting. Planning for future development will help ensure optimal view corridors for future generations.

Location. Participants thought the proximity and connection to "surrounding natural and recreation networks...wetlands and forests" make LCC a unique location. ◊ The immediate access to outdoor recreation and educational sites is a quality that is not found at many colleges and should be used to LCC's advantage. In addition, the site could allow for living or outdoor classrooms using earthworks, wetlands and the oak forest.

Return to top

Compact Campus. Workshop participants liked the "tight clustering of buildings" that allow for "ease of walking" on campus. ◊ The '10-minute walk' is well documented to be the time frame that most people would consider walking to get to a specific location. Any future plans at LCC must take into consideration the distance/compactness between districts. Furthermore, designing pleasant, appealing, safe and direct street, pathway and building connections will make the walk more pleasant.

Sturdy Construction. Many of the participants stated that the "architectural style of the buildings is a distinctive quality" at LCC. ◊ The stark juxtaposition of buildings to their surroundings highlight the delicacy of the natural environment while displaying great strength in its solid fabrication. While the buildings may stand for a hundred years, the infrastructure of the building will need to be upgraded. In addition, the renovation of restrictive buildings and the application of new facades may be necessary to create a more welcoming environment. New development should take into consideration material use and technology, while being creative and innovative.

Space to Grow. Workshop participants commented that room to grow is not really an issue, but it was the "where and how that needs to be planned for." ◊ Without a vision for growth, development is doomed to failure. LCC has over 330 acres of land, of which 295 are either parking or open space. Buildings could be phased so as to not impede existing usage or operation. New districts could finance the next phase of growth. Careful planning, direction, political, and financial out of- the-box thinking will be needed to allow for a new model of community college to be developed on LCC property.

Transportation. Participants noted they are "lucky to have cutting edge public transportation options" such as the LTD's bus rapid transit line (Emx), and dedicated bicycle lanes. ◊ Proximity to I-5, partnership with LTD, and massive amounts of free public parking allow LCC to be a heavily used facility. In order to accommodate growth and density LCC's transportation assets must grow along with it. The I-5 interchange is already at capacity and could be upgraded to allow for a better level of service. LTD could create a dedicated southern BRT loop between Eugene and Springfield Stations at LCC; parking needs can be accommodated with on-street and center block parking in new districts. Underground parking and parking structures could be added as the need to accommodate more people arise.

Art. "The art is great here"...is a comment many participants made at the workshop. ◊ Art should be integrated into any new development on campus. This includes in landscape ecology and sustainable innovation. Revolving art installations and "green" beautification projects were also emphasized during the visioning session.

Return to top

Values. Many of the participants remarked that all "future planning should reflect LCC's core values": Learning, Diversity, Collaboration and Partnership, Innovation, Integrity, Accessibility and Sustainability. ◊ Planners should look to minimize stormwater runoff, sprawl and greenfield development, while maximizing compact and transit-oriented design. In addition, planners should consider sustainability in environmental, social, and economic concerns by containing stormwater runoff in parking gardens, in green space or on green roofs; creating universal access and use of space; and through pioneering partnerships while integrating core curricular programs.

Great Community. Participants made it a point to acknowledge the cooperation and coordination amongst all levels of LCC staff, faculty and students. Additional comments included "how amazing leadership, collaboration and participation" throughout the planning process was. The leadership was said to be "proactive, forward thinking and willing to invest in the future of LCC." ◊ The enthusiasm and willingness of the LCC community is its greatest asset.

Unique Facilities. Many workshop participants shared the opinion that "future planning at LCC can integrate with existing facilities and educational programs" to further the educational mission of the school. ◊ Future development should take into consideration the addition of commercial and retail business, including the linking of incubator businesses with existing and future education programs, internships and employment opportunities. These unique programs can become the cornerstone of future development, contributing to the stability and durability of Lane Community College and future development opportunities.

The outcomes from the workshop process are separated into current and future conditions. The current conditions, reported on in the first half of this chapter gathered collective knowledge – opinions and perceptions – from LCC faculty, staff, and students along with input from community member and area landowners and professionals. The second area of focus, future conditions; was centered on creating a guiding vision statement, establishing broad objectives and measurable goals based on the same principles of collaboration and consensus building outlined in chapter four.

Return to top

RESEARCH FOR THE FUTURE

The work effort thus far has been focused on learning from the past, through the comparative mapping methodology in chapter three; learning from the present, by gathering the users' experiential knowledge of the sites in the first half of this chapter, and by developing the patterns, preferences opinions, and needs from the preference assessment survey that can be found in appendix III. The first step in the planning process is to establish the issues through problem seeking. The second is to determine a catalogue of design goals and objectives (Hamdi and Goethert 1997) to create a user-informed vision statement. Peña defines a problem statement as "a description of the crucial conditions [problems] and design premises [goals and principles] that become the starting point for schematic design (Peña 2001, 134)."

To help create the vision, the Urban Design Lab focused on facilitating two more exercises in the latter half of the planning and design workshops. This part of the workshop was focused on collecting the community's needs and preferences. The exercises centered around two sets of questions. The first set of questions asked about what makes great physical and human environments, and the second set surveyed the future needs and possible uses of the LCC property. This set of exercises used the same procedures as the first two exercises described in this chapter. All participants would answer the questions individually, the answers would be collected; each team then sorted and discussed the ideas, and ordered and prioritized them. Each group then shared their responses to all the participants. The following two sets of questions were asked to the group.

Physical and Human Environment

1. What makes a great place?
2. What are the physical elements of a great college campus?
3. What makes a great building?
4. What makes a great learning space?

Future Needs and Uses

1. What is your idea of LCC's (educational) vision for the next 20 years?
2. What current programs could use new facilities?
3. What should be done with LCC's surrounding landholdings?

Return to top

Physical and Human Environment (Themes are presented in italics.)

What makes a great place? The creation of a great place combines building aesthetics, varied spaces, modern technology and the formation of identifiable districts. All have their role in creating a cohesive design & vision identified through a formal planning process. Integrating multiple transit options into the accessibility of a place can help to alleviate congestion, lost time and pollution. Developing a positive (learning) environment for students through the direction of curricula and learning goals can help with student body diversity, motivation and aid in raising the enrollment of international students. Other ideas investigate entrepreneurial and financial avenues that add to the sense of place including public-private partnerships, innovative revenue streams, support service and an incubator service sector that links to the existing educational mission.
What are the physical elements of a great college campus? Connectivity, buildings, outdoor environment, and sociological factors are four main themes that have been identified in this question. Transportation, nature trails, urban fabric, community programs, housing and commercial uses are all linked to connectivity. Natural light, sustainable principles, health and safety, variety and quality of forms, design and materials, and inhabitable edges are connected to the built environment. The use of art, landscaping and seating; making a variety of places accessible and hiding large parking lots all create positive outdoor environments. Another theme identifies the necessary thoughtfulness needed in design work to establish sociologically supportive spaces that inspire, welcome, create comfort, community and identity within the institution.
What makes a great building? Building functions that encourage interaction and provide positive healthy environments (psychological) that incorporate security and wellbeing and nurture creativity help to create great buildings. Additionally, natural lighting, views and protected pathways are attributes that help create connections to nature and campus. Ease of access to and around campus through wayfinding, easily identifiable circulation systems, and environmental and energy sustainability are three other themes that were identified in the process.
What makes a great learning space? The concept map for this question has a hierarchy starting at the architectural level with spaces and connections to wayfinding and accessibility. The theme of architecture incorporates sustainable buildings that use energy efficiencies and the use of local materials that would impart the northwest aesthetic. The next themes include a welcoming, diverse environment for both staff and students that are defined, yet flexible, have natural light and can include both in and outdoor spaces. The qualities linking architecture and space create another heading: healthy buildings and includes operable windows, allow quality light, ventilation options, and lead to good views. Technology is the final theme, highlighting both wireless access and outlets that are easily accessible and equitably located around campus.

Future Needs and Use.

What is your idea of LCC's (educational) vision for the next 20 years? The theme built environment generated the most data, illustrating some of the desired goals as: incorporating a defined campus center, housing, retail, multi-use buildings and a hotel; public transportation, parking, population growth, and walkability of campus; and habitat, storage, art and community pride. A strong graphic link llustrates the desire that the college become more sustainable by incorporated carbon neutrality and alternative energy solutions into the campus and its buildings; the environment was also noted. Aspirations such as affordability, American Disabilities Act requirements and inclusiveness were all attached to accessibility, which was also linked to the built environment. The next two themes were not connected to the first three. They include educational offerings and educational community. Educational Offerings encompass' departmental breadth, using campus as a learning lab and the connection to transfer and trade students. The last theme, educational community, links the communities needs and the research mission to the overall twenty-year (educational) vision of LCC.
What current programs could use new facilities? The answers from this question illustrate one overwhelming desire for a new facility for the environmental energies program, with two other sizeable desires for a new student center and biology facility. Linked beneath those are hospitality, athletics, and advanced technology. Additionally, the fourth tier lists the departments of aviation, welding and automotive.

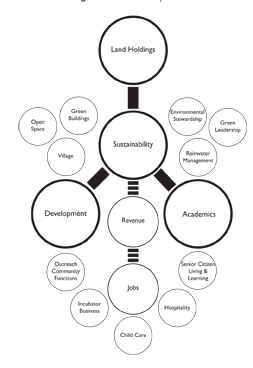

What should be done with LCC's surrounding landholdings? There are four main groups with linking subgroups for each. The primary themes for this diagram are connections, preservation, building types and utilities. These themes are connected to each other. Surrounding roadways, cities and transportation options and facilities, landmarks, wayfinding, neighboring communities and the environment all fall under the connections' main heading. The environment is shown to have a strong connection to the preservation theme, with subgroups connected to outdoor classrooms and recreation trails with urban farming, an interpretive center and an arboretum linking. Building types links housing with students, faculty, and community; commercial links with retail and a movie theater; nature links with an interpretive center with a sport/recreation complex, while taking parking and classroom needs into consideration. The fourth main theme considers utility needs that encompass green power generation and moving the existing power-lines and dumpsters out of view.

The results from the workshops created a vocabulary based on experiential knowledge created by the participants through consensus-building exercises. Throughout the workshop, the work produced was pinned up on the walls and at the conclusion of the workshops, it was evident that the participants were excited see the breadth and scope of information they generated by working collaboratively. The concluding exercise asked participants to develop a conceptual vision using tracing paper, a base map and the "knowledge" hanging on the walls. Each vision was considered when transitioning into the design phase of the process and is presented in chapter six: Common Themes. Out of this mass of participant-created knowledge, the Urban Design Lab was tasked to synthesize and analyze the data to generate the measurable goals, which support project objectives that are rooted in the vision statement.

VISION, GOALS, PRINCIPLES

At the UDL studio, the design team sorted and discussed the data created from the workshops to identify the dominant framework and key themes. The completed results from the 'physical and human environments' and 'future needs and uses' exercises were combined with data from the 'rights and blight' and 'S.W.O.T. analysis' to create a series of broad design goals. The participant identified principles helped guide the outcomes of the recognized problems. The UDL grouped the principles in categories called goals. Each goal is a broad statement that incorporates the principles that were identified through discussion from the workshops and represented in the diagrammed concept maps. The vision statement was then developed to provide guidance and motivation for the ensuing design process.

Return to top

To create a campus that has appropriate infrastructure that fosters educational excellence through sustainable building and landscape practices organized around equitable accessibility contributing to a complete community.

Guiding Goals

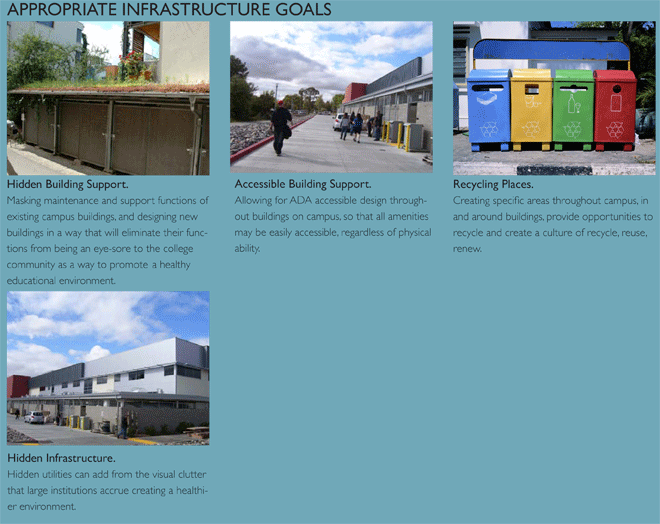

Goal 1: Appropriate Infrastructure. Layout a strategy that incorporates camouflaged support services into the campus core that are efficient and logical.

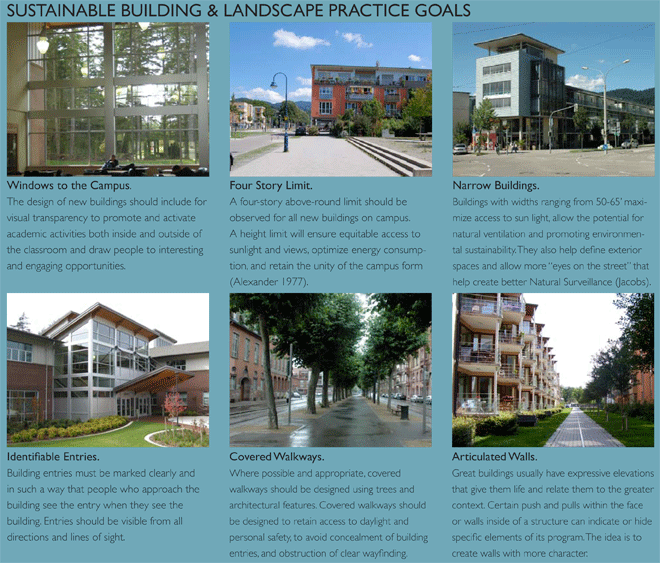

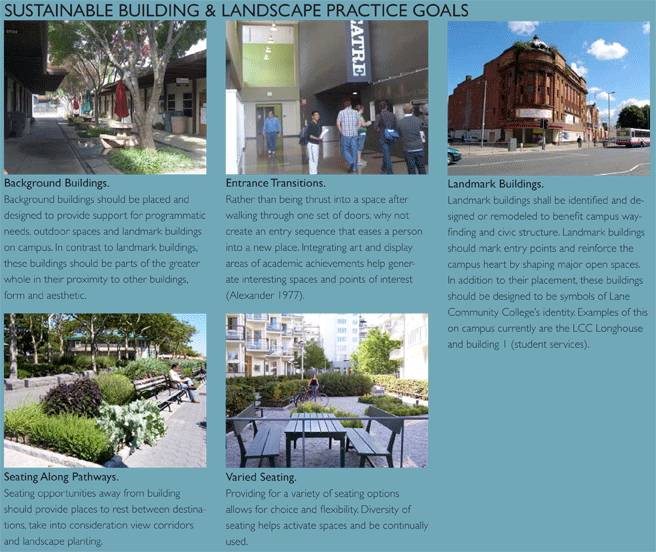

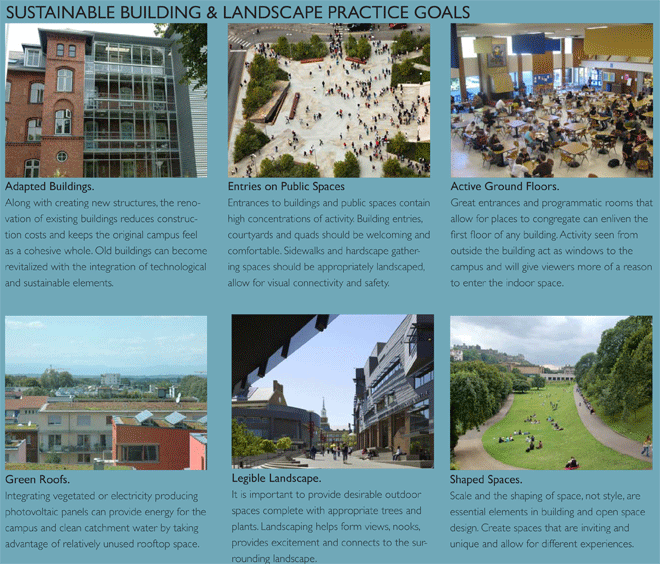

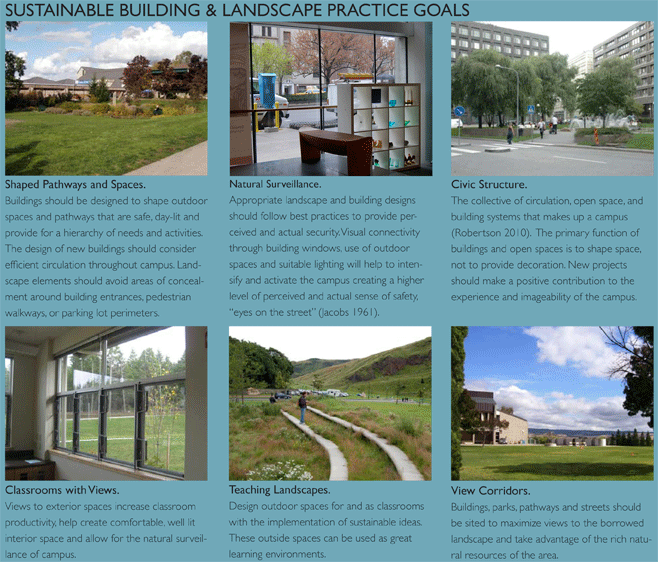

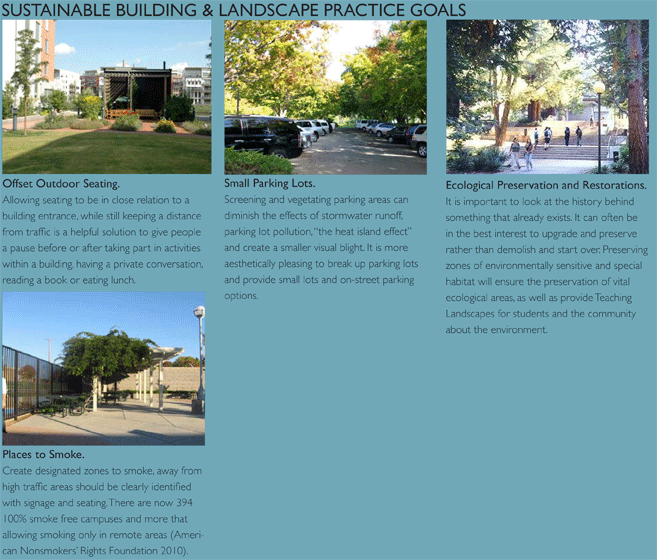

Goal 2: Sustainable Building and Landscape Practices. Produce a vision that maximizes environmental stewardship and green technologies through attractive, well designed, safe, convenient, and comfortable buildings and outdoor spaces.

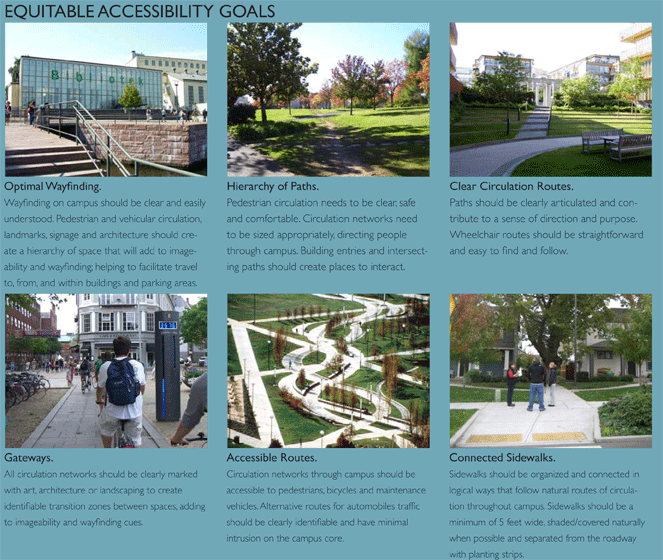

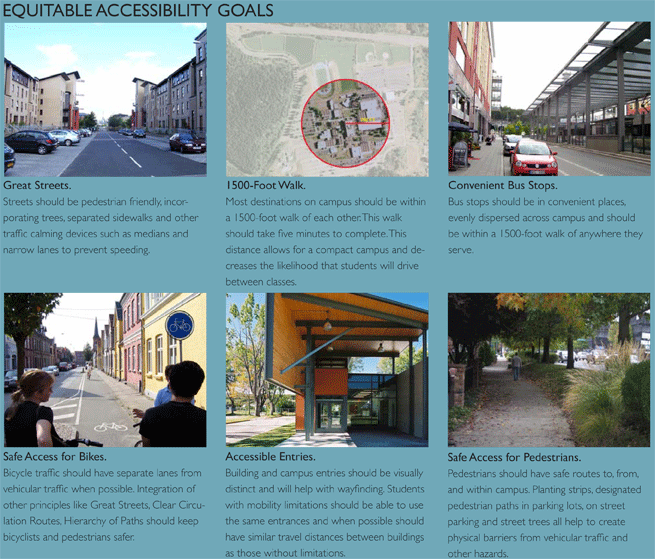

Goal 3: Equitable Accessibility. Provide easily identifiable hierarchy of gateways, roadways and pathways that promote safe, convenient, and comfortable options.

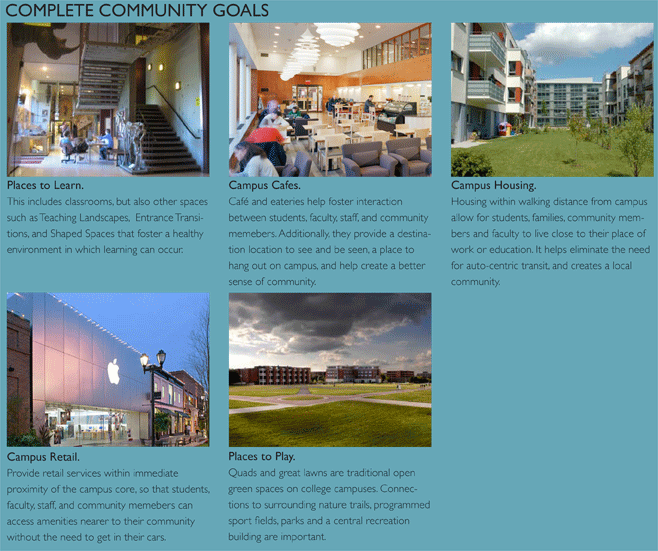

Goal 4: Complete Community. Provides places to learn, live, shop, work and play that help create a well-balanced environment for all Lane County residents.

Design Principles

Six months prior to the visioning process, LCC's College Council adopted a comprehensive list of design guidelines. The Urban Design Lab analyzed these goals and incorporated 100% of them with the results from the visioning workshops' findings to create an expanded comprehensive list of design goals and principles. The design principles are grouped by goal. Each principle has an accompanying image that expresses its spirit and a written recommendation for the problem identified in the workshops.

Return to top

Equitable Accessibility Goals
